In an instructions below, we provide two solutions how to manage JoinerCAD samples and hardware: how to upload them for the first time, how to re-upload and how to update the samples from our GitHub page.



1. How to upload

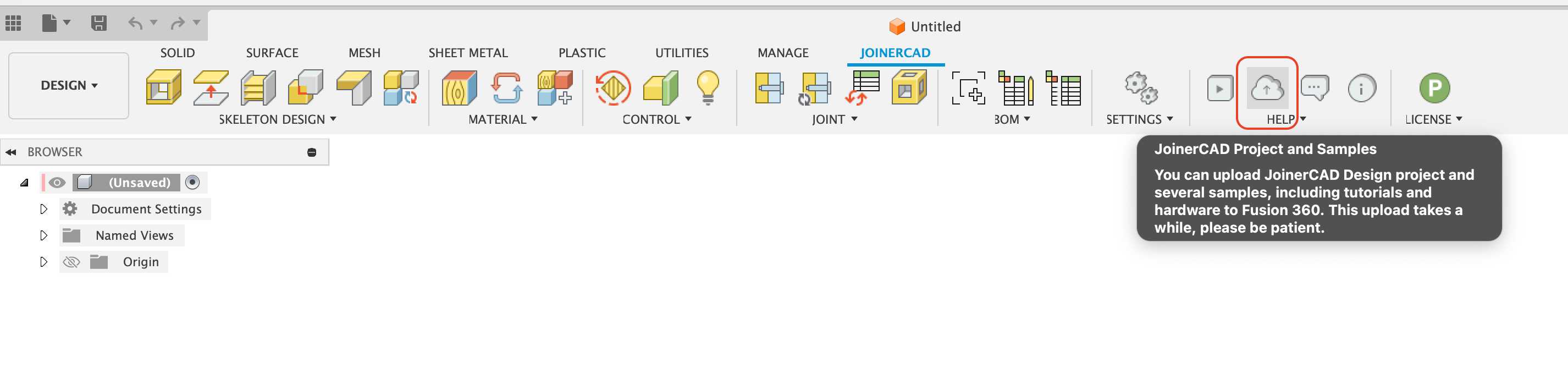

For the first time, if user wants to upload samples and hardware components, user needs to click on upload button:


2. How to re-upload (update existing components)


If you are an experienced users and you are using JoinerCAD for a while now, you may want to check if there are any updates for existing or newly created components. Usually we do not update local samples during standard software updates, because users may have changes in these components. So, you need to update components manually.


1. Go to: https://github.com/CeliAPS/JoinerCAD


There you'll find the same structure which is in our samples during initial upload. This means, you can browse the same catalogs.


2. Find the component you are interested to:

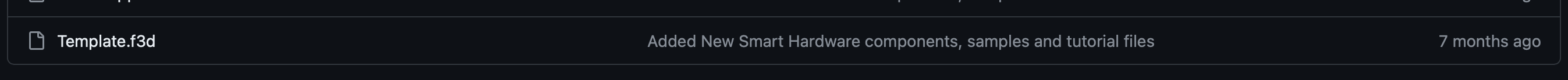

If the component was not changed, you'll see a comment which says that this is initial upload:

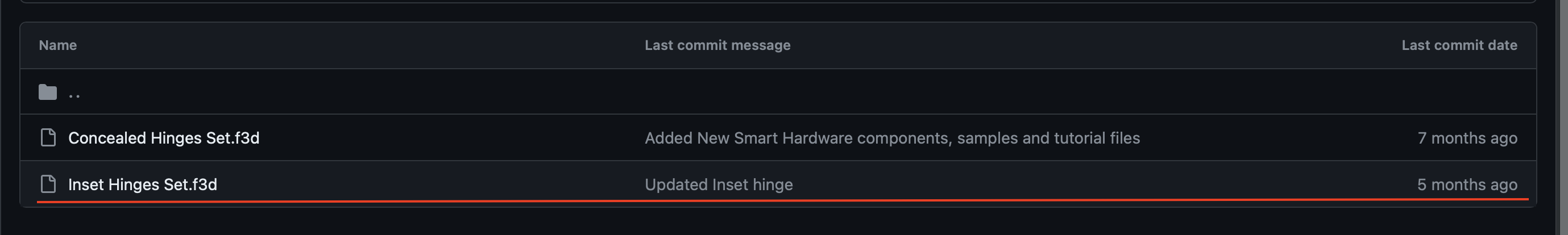

If the component was updated, you can see a comment:


3. Download the component:

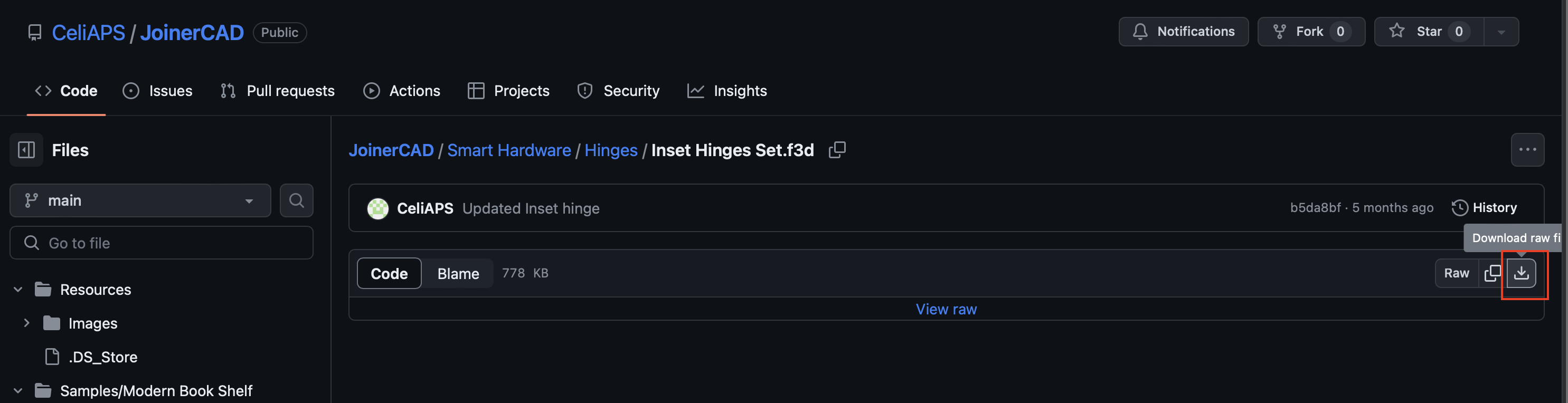

Click on that component and you can access download option on a right corner:

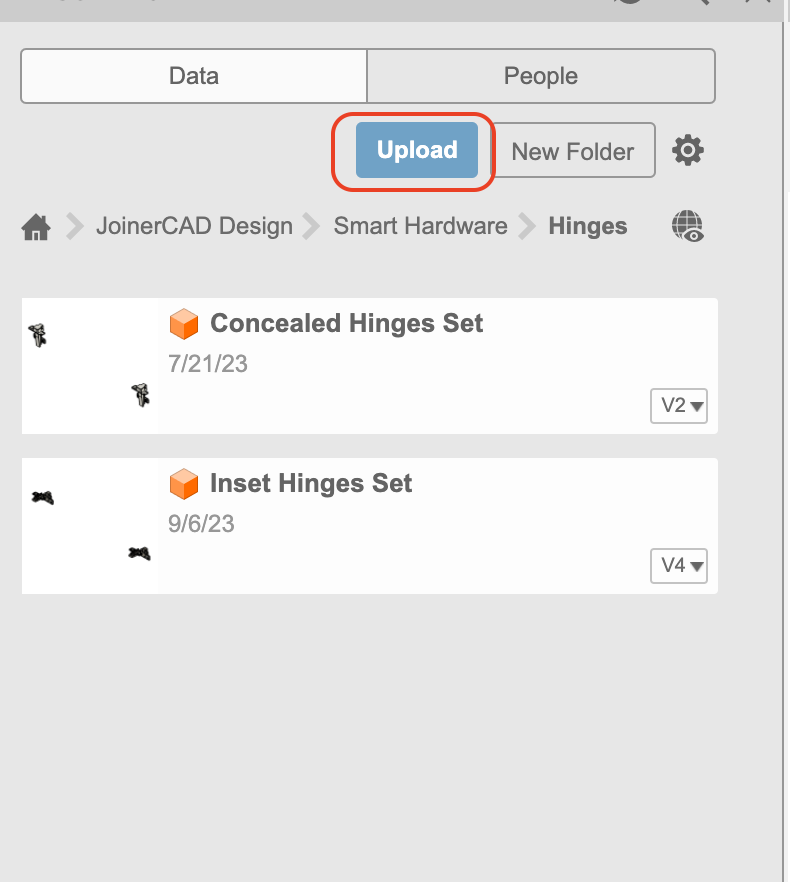

4. Upload the component to Autodesk Fusion's Project using standard upload mechanisms:
